Air Duct Probes

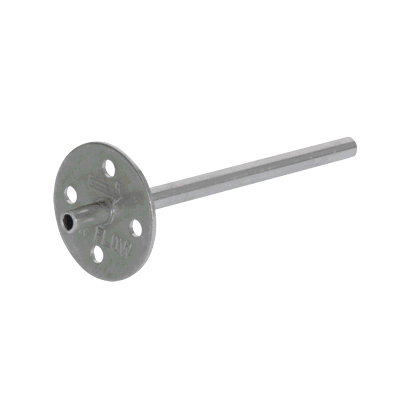

The SDP Static Ductprobes are ideal to measure a static pressure in ventlilation ducts, fan chambers , rooms or any other location where a pressure sample needs to be taken. It is manufactured in a 100mm and a 200mm length. A CMR colour coded tube can be connected directly onto the 6.3mm nipple. It is made of Aluminium and has a straight opening at the end to pick up a static pressure. It can be mounted easily by simply drilling a 6.5 mm round hole into the duct and using the flange holes to fasten it to the duct wall. The measured pressure can be sensed by either the PS Pressure Switches or the CMR transmitters such as the P-Sensors or any other CMR Sensor.

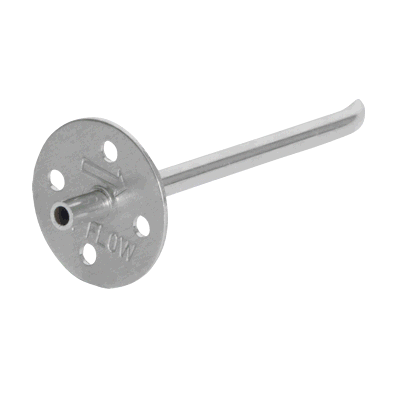

The TDP Total Ductprobes are ideal to measure an impact or total pressure in ventlilation ducts, fan scrolls and any other location where a total pressure sample needs to be taken. If used in conjunction with the SDP Static Probe it can measure a velocity pressure or air volume. It is manufactured in a 100mm and a 200mm length. CMR colour coded PVC tube can be connected directly onto the 6.3mm nipple. It is made of Aluminium and has a 90 degree opening at the end to pick up the toyal pressure. It can be mounted easily by drilling a 6.5 mm round hole into the duct and using the flange holes to fasten it to the duct wall. The measured pressure can be sensed by either the PS Pressure Switches or the CMR transmitters such as the P-Sensors or any other CMR Sensor.
