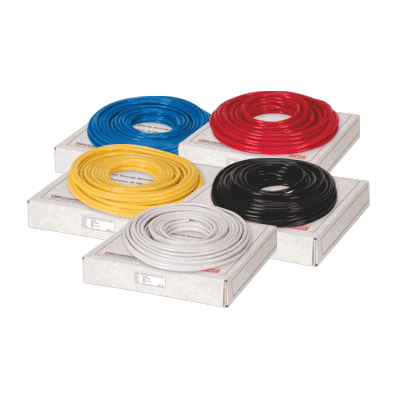

The CMR PVC tube is made for sensing air pressure and air volume and is approx 8mm O/D and 4.7mm I/D and comes in various colours. It is ideal for Industrial cable tray Installation.it comes in cartons containing a reel of tube.
The CMR PU tube is certified for pharmaceutical applications and made for sensing air pressure and air volume and is 8mm O/D and 5mm I/D and comes in red and blue colour. It is ideal for Industrial cable tray Installation.
The CMR Silicone tube is made for sensing air pressure and air volume and is approx 6mm O/D and 3mm I/D and comes in red and blue colours. It is ideal for installations in panels.

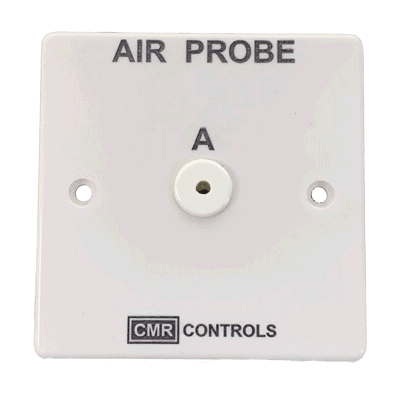

The plastic Air Probe Plates are used to terminate the CMR PVC tubing on ceillings, walls or equipment. The Plate can have up to four Tube End fittings in different colours and the plate is laser engraved A, B, C, D. for easy identification.
The stainless steel Air Probe terminates the tubing from the room side to the measuring transmitter. The Plate can have up to four stainless nipples and is also black engraved A,B,C,D.

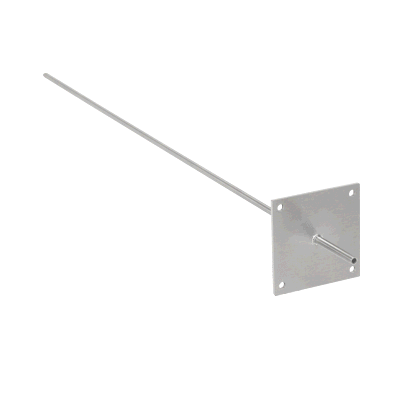

The CP Ceiling Probes have a tube connection and are made of stainless steel. They are designed to terminate the CMR PVC tube. The ceilling Probes are installed in the ceilling and end up in the mezanine above where all the services are situated..

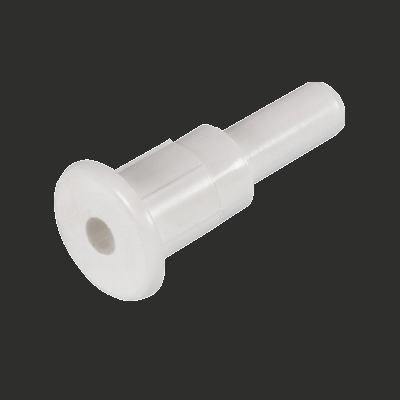

The CMR Tube End is made to fit the CMR PVC Tube. It is ideal to connect the tube to Air Probe Plates, ceiling Tiles or walls in clean room installations or eqipment. There are endless applications. There are six colours to choose from.

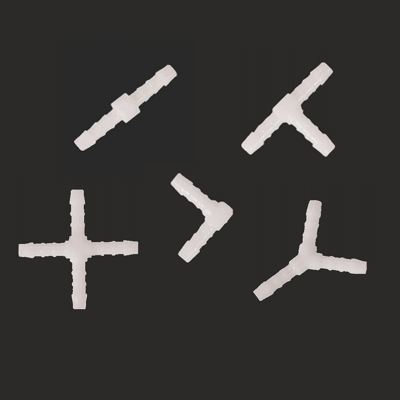

The Tube connectors are white and are made of Acetalcopolymerisat (POM). They fit the complete range of CMR PVC Tube and CMR Silicone tube, but other sizes are available on request for OEM applications in larger quantities.

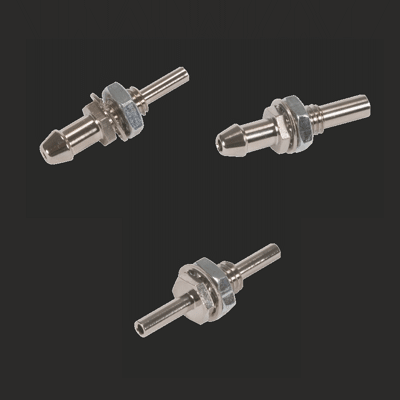

The CMR nipple connectors are made to connect PVC to PVC , PVC to Silicone or Silicone to Silicone tube.in panels or control or monitoring systems. It comes with a spring washer and half nut.
